Introduction
General Features of Series Dam

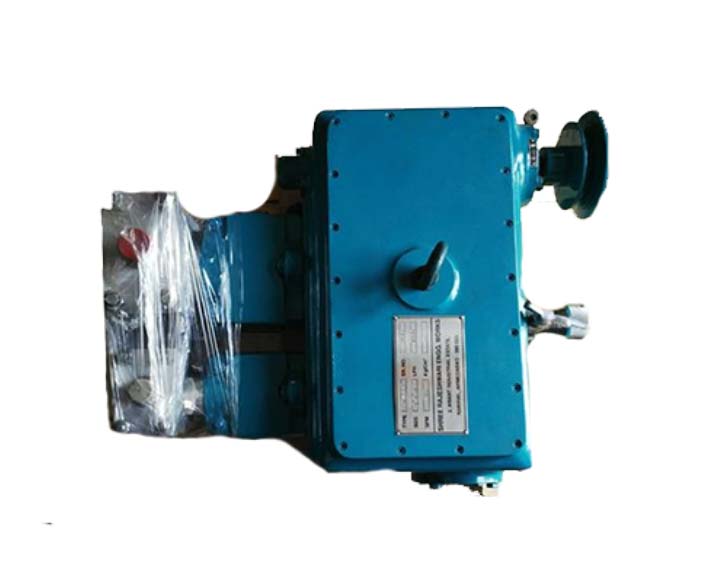

- The unit comprises of an accurate Reciprocating Plunger Pump driven through an AC motor.
- (Optional) – Pump heads in Hydraulic Diaphragm construction.
- The unit has three pumping heads, one handles alkali solution, balance two handles dye solution.
- The capacity of the unit can be varied manually with a single control without affecting the set ratio of the unit, depending on the speed of the mangle, quality of the fabric, etc, while the unit is running or at rest.- The optional mechanism to control the flow of liquor as per the speed of mangle available upon request.
- Various Dye – Alkali ratios possible depending upon the process chosen. Ratios possible 1 : 4, 2 : 3, 1 : 1, 1 : 2. Any ratio above can be preset by a very simple positive method. Once the ratio is set there is no possibility of change in the prefixed ratio.
Dye Alkali Mixer
Application
Cold Padding of Short, Long batches with short or long fixation time.
Method Employed
Single Padding – Pad – batch cold with ‘Short’ or ‘Long’ fixation time.
Available in Three Separate Models
Model | Capacity – LPM |
---|---|
DAM-1 | 5 |
DAM-2 | 7.5 |
DAM-3 | 10 |
DAM-3SP | 15, 20, 25, 30, 40 |
