Duplex Plunger Dosing Systems for Precision Control

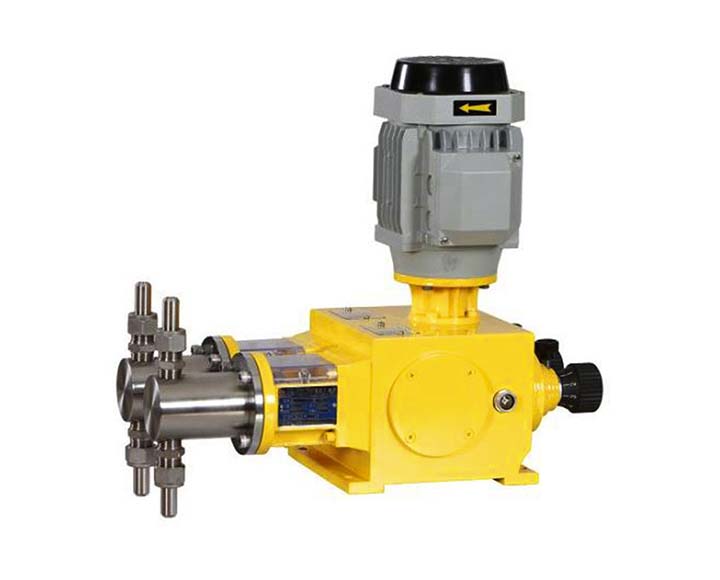

Duplex Heads Plunger Metering Pumps 2J-X Series Plunger Metering Pump Capacity range 5-300lph,8-400bar 2J-X is the duplex head model of LGP plunger pumps. It is with one motor drive and gear box. Adjustable stroke from 0 to 100% while in operating or at rest Adjustment is Micrometic. Pumping is done by positive Displacement of the liquid. Such Positive Displacement Pumps are best suited for feeding the exact quantity (Metered volume) of the liquid. These types of Metering Pumps are most suitable for Continuous Process Plants where stroke needs to be changed very otten. Any nature of liquid either acidic or alkaline can be handled by these Pumps.
- Least Maintenance with maximum efficiency.
- Easy for operation.
- Power Consumption is nominal
- Gears run soundless in oil bath.
- Space requirement is very less.
Plunger Type Pumps
Technical Specifications:
| Model | 50Hz | 60 Hz | Pressure | Plunger Dia. (mm) |
Stroke Length (mm) |
Power kW(HP) |
Inlet&Outlet Size | Connection Size | |||||
| Flow (lph) |
Flow (gph) |
SPM | Flow (gph) |
Flow (lph) |
SPM | (Bar) | (Psi) | ||||||
| 2J-X5/38 | 5 | 1.3 | 96 | 1.6 | 6 | 115 | 380 | 5510 | 6 | 20 | 0.37(0.5) | DN6 | 6*12mm (union for welding) |
| 2J-X8/21 | 8 | 2.1 | 2.5 | 10 | 210 | 3045 | 8 | ||||||
| 2J-X16/13 | 16 | 4.2 | 5.1 | 19 | 130 | 1885 | 10 | ||||||
| 2J-X25/9 | 25 | 6.6 | 7.9 | 30 | 90 | 1305 | 12 | ||||||
| 2J-X40/5.4 | 40 | 11 | 13 | 48 | 54 | 783 | 16 | ||||||
| 2J-X60/3.5 | 60 | 16 | 19 | 72 | 35 | 508 | 20 | ||||||
| 2J-X100/2.2 | 100 | 26 | 32 | 120 | 22 | 319 | 25 | DN10 | 10*16mm (union for welding ) |
||||
| 2J-X130/1.7 | 130 | 34 | 41 | 156 | 17 | 247 | 28 | ||||||
| 2J-X160/1.3 | 160 | 42 | 51 | 192 | 13 | 189 | 32 | ||||||
| 2J-X200/1.0 | 200 | 53 | 63 | 240 | 10 | 145 | 35 | ||||||
| 2J-X250/0.8 | 250 | 66 | 79 | 300 | 8 | 116 | 38 | 15*24mm (union for welding ) | |||||
| 2J-X300/0.6 | 300 | 79 | 95 | 360 | 8 | 116 | 42 | ||||||
Metering Pump India plunger metering pump is designed for high pressure and heavy-duty applications. Unlike loss motion pumps with spring, all LPG plunger pumps are push and pull design. The plunger makes harmonic motion by the crankshaft .
Features
- Flow rate can be adjusted via unique adjusting mechanism from 0-100%
- The adjustment can be carried when pump is in operation or at stop
- The steady accuracy is ±1% from 30%-100% of the maximum output
- Automatic operation is achieved by variable speed drive
- Special application for high temperature or low temperature is available with cooling jacket or heating jacket
Materials:
- Pump head: SS304,SS316
- Pump case: Cast Iron
- Plunger: Ceramic or SS316 coated with ceramic
- Packing seal: PTFE and SS316 Ring
- Valves: SS304,SS316
- Valve Ball: SS304,SS316, Ceramic
Metering Pump India, as one of the leading such manufacturers and suppliers, is professional in manufacturing duplex heads plunger metering pumps. Done’t hesitate to buy advanced duplex heads plunger metering pumps with our factory. We will do our best to meet your requirement.
